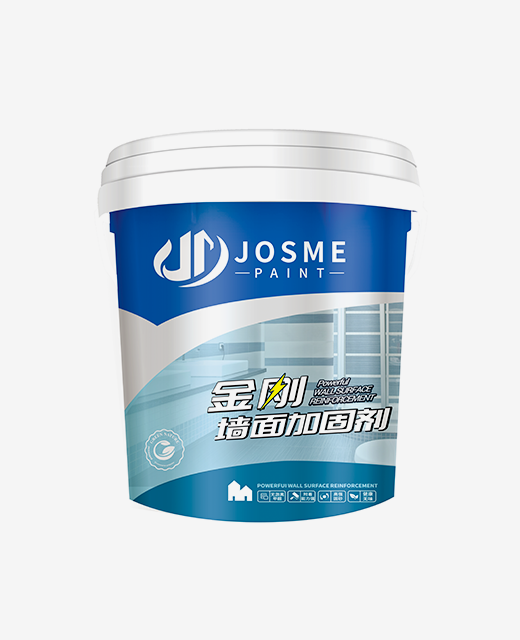

Diamond Wall Reinforcing Primer — Deep Penetration, Sand-Fixing & Substrate Stabilization
Diamond Wall Reinforcing Primer is a polymer emulsion-based substrate conditioner made to stabilize porous, friable, degraded mineral surfaces. Ultra-fine polymer particles penetrate 3–5mm into capillary structures of concrete, plaster and masonry, forming a secondary reinforcing layer to seal the substrate from inside out. This water-based, low-VOC product works on concrete, aerated concrete, plaster walls, putty layers and floor substrates for renovation and new build projects.
What Is Diamond Wall Reinforcing Primer?
The Diamond Wall Reinforcing Primer is a surface conditioner that penetrates deeply and is composed of polymer emulsion and multifunctional additives.. Chemical consolidation occurs within the substrate upon application, resulting in the formation of a reinforcing layer that enhances water resistance, sealing performance, and surface hardness. It establishes a stable foundation for flooring systems, tile, or topcoats.
The material is able to penetrate the substrate due to its low viscosity, as opposed to forming a thin film on the surface. This distinguishes it from conventional surface primers.
Key Technical Parameters
| Parameter |
Value / Description |
| Composition |
Polymer emulsion + multi-functional additives |
| Solid Content |
25–35% |
| Penetration Depth |
Up to 3–5mm (depending on substrate porosity) |
| Tensile Bond Strength |
>1.5 MPa (ASTM D4541) |
| Alkali Resistance |
pH 12+ tolerance |
| VOC Level |
Low VOC |
| Application Method |
Roller or brush |
| Recommended Consumption |
0.1–0.15 kg/㎡ per coat |
| Storage Temperature |
5°C to 35°C |
| Storage Conditions |
Cool and dry place |
| Overcoating Window |
Apply topcoat within 24–48 hours for best bonding; primer active up to 7 days |
Three Core Product Advantages
1. Sand-Fixing Performance: Locks fine particles to prevent the surface from crumbling, sanding substrates, powdering putty layers, and dusting floors by binding loose, dusty, and powdery surfaces.
2. Deep, Inside-Out Reinforcement: The internal structure of the substrate is fortified prior to the application of the varnish by ultra-fine polymer particles and low viscosity, which penetrate 3–5 mm into the substrates rather than forming a surface film.
3. Water-Based, Low-VOC Formula: Offers minimal odour during application and low VOC levels; suitable for domestic home renovation and occupied building refurbishment.
Suitable Substrate Conditions
This reinforcing primer is designed for problematic substrates that cannot receive paint or tile directly. It can be used on:
Wall sanding and floor sanding — surfaces that release dust or powder when touched Putty layer powdering — loose putty with low cohesion Concrete after putty removal — exposed, rough or porous concrete Low-hardness top putty layers — soft surfaces needing consolidation before renovation Poor-bonding inferior mortar substrates — surfaces with weak inter-layer adhesion Interface treatment layers — between concrete, aerated concrete, and plastering
For floor works, it also serves as preparatory coating before waterproofing systems or tile installation.
Application Scenarios
Old House Renovation: Seals walls that are weak, powdered, or flaking prior to painting or puttying to prevent delamination.
Industrial Floor Pretreatment: Establishes a more robust mechanical bond by preparing porous concrete for epoxy/polyurethane topcoats.
Coastal and high-humidity environments: Extends the service life of the coating system by reducing moisture and saline intrusion.
Masonry & Heritage Restoration: Reduces inter-layer separation by consolidating fragile lime-based substrates prior to the application of topcoats.
Quality Control Process
JOSME implements batch quality control for this product, which encompasses four critical inspection points:
Subsurface infiltration is verified through dye tracing during penetration depth testing. Adhesion Strength Testing: ASTM D4541 pull-off testing at >1.5 MPa Efflorescence Resistance Testing: This test measures the blocking effect of migrating salts. Polymer film remains stable at pH 12+, as evidenced by alkali and saponification resistance testing.
Before shipment, each batch undergoes raw material incoming inspection, in-process monitoring, and finished product testing.
Packaging and Supply Information
For long-distance sea freight, JOSME implements export-grade packaging that is reinforced to mitigate transit damage and leakage.
Private-label solutions, custom packaging, and matched formulations are available upon request. Orders for standard products are typically dispatched within two to three business days. Private-label orders and custom formulas require 7–15 working days.
FAQ
Q1: The wall releases powder on touch. Can I skip the reinforcing agent and apply latex paint directly?
A1: It is not advisable to apply direct painting over a loose, powdery substrate. There is a possibility that paint film will separate due to its inability to adhere securely. Before applying topcoats, apply Diamond Wall Reinforcing Primer to consolidate porous surfaces.
Q2: How long should I wait after primer application before puttying or tiling?
A2: Wait for full drying and hardening of the primer. Putty or tile work carried out too early will reduce consolidation effect. Drying time changes with site temperature and ventilation.
Q3: Will strong odor occur during application?
A3: The water-based formula creates mild odor only. Normal ventilation is enough during application, and it fits indoor renovation projects.
Q4: Can it be applied on damp walls?
A4: Substrate moisture below 15% is recommended. This water-based product can be used on damp surfaces, but not fully saturated substrates.
