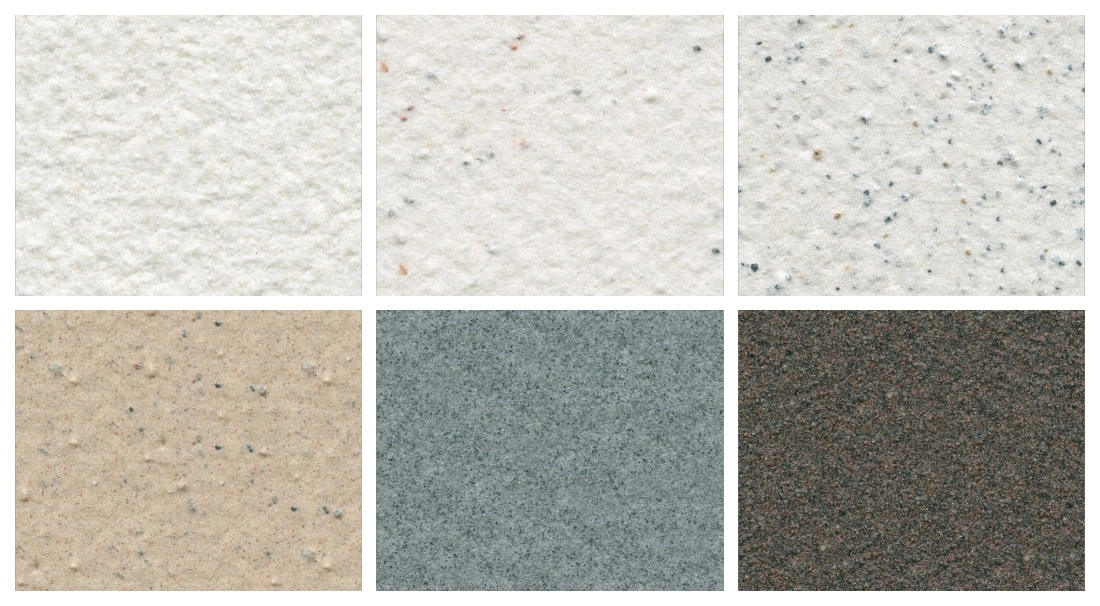

Natural Stone Coating

Natural Stone Coating for Exterior & Interior Walls :Lightweight Stone Texture with Long-Term Weather Protection

Natural stone coating on any wall surface mimics the visual depth of granite and marble without the structural weight of real stone. The fundamental element of the composition is crushed grains of natural stone, glued with multifunctional additives and high-performance acrylic emulsion. It may be sprayed with a spray gun on cornices, curved walls, columns and flat facades. This coating is ideal for complicated architectural geometries, residential villas and high rise facades where heavy masonry is not practicable since it decreases wall load by over 80% compared to ordinary stone cladding.

What Is Natural Stone Coating?

Natural stone coating is a liquid applied architectural wall treatment. Crushed marble, granite or quartz grains bound together with a weather resistant acrylic resin emulsion and useful additives, provide a surface that is indistinguishable in sight and feel to actual stone slabs. It overcomes the main limitations of traditional stone cladding: its enormous weight, the risk of a slab falling, the high labour costs and the difficulty of application to non-planar surfaces.

It may be spray sprayed and weighs around 10% of genuine stone thus it can be used on geometries that stone cladding cannot reach such as curved facades, cornices, intricate columns and strange substrate profiles.

Key Technical Parameters

Performance Advantages

Real stone texture, stable colouring
Sand-grain relief gives the depth of actual stone. Colour originates from natural stone grains and not dyes and provides the long term stability of colour with a fraction of the UV shift of pigment based coatings.

Weather and UV-resistance
Suitable for coastal, high humidity and high UV situations acrylic or silicone modified acrylic binder. Resists fading, ageing and chalking.

Water resistant, little maintenance
48 to 72 hours water immersion - no whitening or softening. Resistance to acid and alkali. Rain cleans away dust, so you have to clear less often.”

Crack bridging and adhesion
No peeling or delamination of bonds. Elasticity bridges hairline fissures in concrete caused by heat movement, keeping the waterproof barrier intact.

Low-VOC, water-based
Complies with national VOC limits. JOSME is ISO 9001, 14001, 45001, 50001, China Environmental Labelling and China Green Natural Stone Coating certified. Documentation available on request

Complete Coating System

The four layers function together as one integrated solution. Omission of any layer will affect adhesion, weathering and service life.

Putty—levels substrate; fills up imperfections.

Primer — seals the substrate, prevents alkali migration (pH must be < 10) and forms adhesion.

Finish – entire texture of the stone, its colour and ornamental effect.

Topcoat – clear silicon-acrylic varnish covers porous surface, gives UV protection & minimises dust build-up.

Application Scenarios

Commercial Facades Premium
Monolithic granite appearances are achieved in luxury hotels, corporate HQs and retail malls. Lightweight, ETICS compliant and safe for high rise buildings where the load of stone cladding is of issue.

Exterior of a residential villa.
Premium stone appearance with texture and colour customisation and no engineering expense of genuine stone. Reducing weight allows for more wall assemblies that can hold a stone appearance finish.

Hard infrastructure for environment
Resistant to salt spray and mould in coastal or high humidity environments. Flexible film allows for some movement of the substrate and provides waterproofing during heat cycling when stiff coatings break.

Decoration of interiors
Great for accent walls, lobbies and feature areas that need the look of genuine stone, without the difficulty of installing tile or slab.

Quality Control Process

Spectrophotometry regulates Delta E across batches (Colour constancy)

Particle size – All granules are homogeneous in size, eliminating drooping or uneven texture.

Water whitening – No whitening or softening after 48-72 h immersion period.

Adhesion – Bond strength between primer, finish and topcoat measured by ISO 4624 pull-off tests.

Retention of batch samples guarantees full traceability.

Customization & Supply

JOSME supports a range of project and OEM requirements:

• Custom colors and color matching with physical swatches available
• Customized particle sizes and wall-finish effects
• Private-label packaging and custom formulations

Lead times: Standard products ship in 2–3 working days. Custom-formula, color-match, and private-label orders take 7–15 working days. Large project orders can be scheduled in advance to align with your construction timeline.

Frequently Asked Questions

Q: What core performance benefits does the raw material formula provide?

A: Water, UV and yellowing resistance and weathering stability are given by acrylic emulsion, natural stone grains and additives. Will not whiten, discolour or degrade when exposed to the elements.

Q: How does it compare to natural stone?

A: About 80% less stress in the wall, no chance of falling slabs, no constraints to shape, and significantly cheaper cost. Columns, curving walls, cornices, everything possible.

Q: What is the function of the four layer system?

A: Putty levels. Primer seals and blocks out alkali. Finish gives stone texture and colour. Blocks UV and dust. Topcoat. Each layer is needed.

Q: Why might colour change from batch to batch?

A: Natural stone grains are quarry specific. Complete batches are mixed on site and one facade is ordered at a time. JOSME utilises spectrophotometry to manage Delta E.

Q: Can it be applied on top of existing ceramic tiles?

A: Yes, if you use a high adhesion interface primer.

Contact Us

For samples, technical questions, or project inquiries, reach us at [email protected]. We look forward to supporting your Natural Stone Coating project.
